U Type Sheet Pile

(5.00)

U type Sheet Piles are a large cross-section width ensures that the mechanical properties of the cross-section structure are designed reasonably and has a high  ‘quality factor’. The use of U-type sheet piles is usually supplied as double piles, with the common interlock crimped (several patterns are available), or welded (more expensive). Triple piles are usually supplied with one common interlock crimped and the second one (partially) welded.

Advantages of U Type Sheet Piles

  • Wide range of sections
  • Excellent statically properties
  • Great aptitude for re-use and driving into compact soils, especially the sections with reinforced shoulders (PU 22,…)
  • Very good installation quality and performance.
Add to wishlist

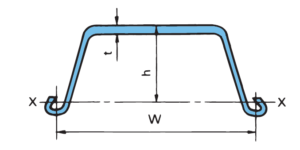

U Type Sheet Pile Dimension





Section

 Dimension Sectional Area Mass Moment of Inertia Modulus of Section
Width Height Thickness Pile Wall
b h/2 t
mm Mm mm cm2/pile Kg/m Kg/m2 Cm4/m Cm3/m
NS-SP- IA 400 85 8 45.21 35.5 88.8 4500 529
NS-SP-II 400 100 10.5 61.2 48 120 8740 874
NS-SP-IIA 400 120 9.2 55.01 43.2 108 10600 880
NS-SP-III 400 125 13 76.4 60 150 16800 1340
NS-SP-IIIA 400 150 13.1 74.4 58.4 146 22800 1520
NS-SP-IV 400 170 15.5 97 76.1 190 38600 2270
NS-SP-VL 500 200 24.3 133.8 105 210 63000 3150
NS-SP-VIL 500 225 27.6 153.8 120 240 86000 3820
NS-SP-IIW 600 130 10.3 78.7 61.8 103 13000 1000
NS-SP-IIIW 600 180 13.4 104 81.6 136 32400 1800
NS-SP-IVW 600 210 18 135.3 106 177 56700 2700
NS-SP-SX10 600 130 10.3 78.7 61.8 103 13000 1000
NS-SP-SX18 600 180 13.4 104 81.6 136 32400 1800
NS-SP-SX27 600 210 18 135.3 106 177 56700 2700



Using of steel sheet pile in construction site is increasing day by day in Dhaka including allover in Bangladesh. We delivered U type sheet pile in Dhaka also in whole Bangladesh. For selling high-quality U type sheet pile in Bangladesh, SIMEX Bangladesh is a leading company in this native industry. If anyone want any type [1] of sheet pile, we are ready to serve.

[1] Steel Sheet Piles, Timber Sheet Piles, Vinyl Sheet Piles and polymeric sheet piles, Aluminum Sheet Piles, Precast Concrete Sheet Piles

Contact Us

Contact us for the U type sheet pile in Bangladesh or inquire what we can do for you. We have dedicated customer service representatives who can answer all of your questions. We’re always happy to provide you with our services and information over the phone or schedule a time to discuss your project face to face.

———-

Sales: +8801733331033
Engineering: +8801733331032
销售老板: +8801733331031

Mail Us:

Head of Sales: [email protected]
Head of Engineering: [email protected]

Kabir Hossain - April 24, 2021

A few days ago I have looked for U Type Sheet Pile in Bangladesh. After web research, I got SIMEX Bangladesh and make a deal for the U Type Sheet Pile. I strongly recommended SIMEX Bangladesh is one of the best U Type Sheet Pile providers in Bangladesh.

Nishant - April 24, 2021

For construction work, I need sheet piles very often. But I didn’t find any trustable company from whom I buy the best U type sheet pile. I searched for a long time for the best-quality U type sheet pile in Dhaka. Then I found SIMEX Bangladesh. I ordered a few ton U type sheet pile from them for measuring the quality. It seemed that the sheet piles are those which I wanted. The quality, size, everything is high-quality, durable, strong and sustainable. I can use them for my construction projects unworriedly. Now I am tension-free as I choose SIMEX Bangladesh for U type sheet pile. They are trustworthy. I highly recommend the SIMEX Bangladesh is also a game-changing provider for U Type Sheet Pile in Bangladesh.
