A poultry farm is more than one building. A successful poultry farm needs proper planning, strong construction, good access, storage space, water and drainage systems, waste handling areas, and room for future expansion.
We can support poultry farm projects from the early construction stage to the final built facility. Our goal is to provide practical construction solutions that make poultry farms easier to operate, clean, manage, and expand.

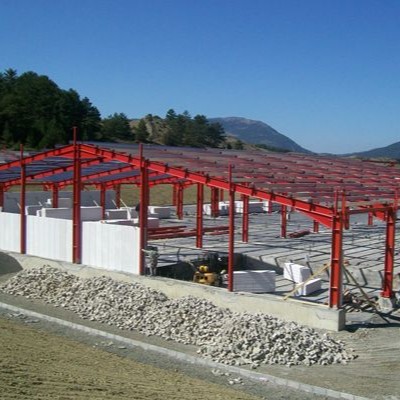

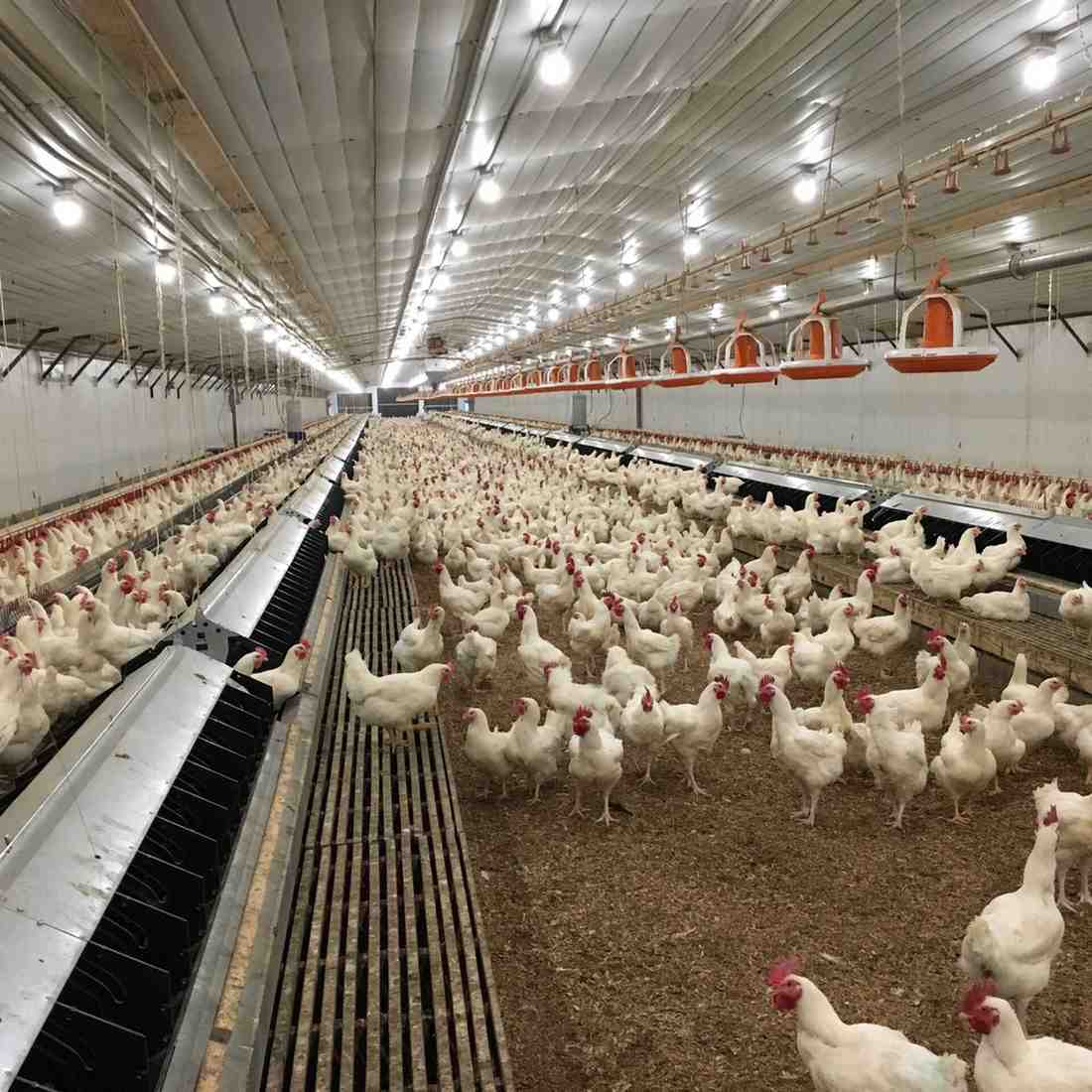

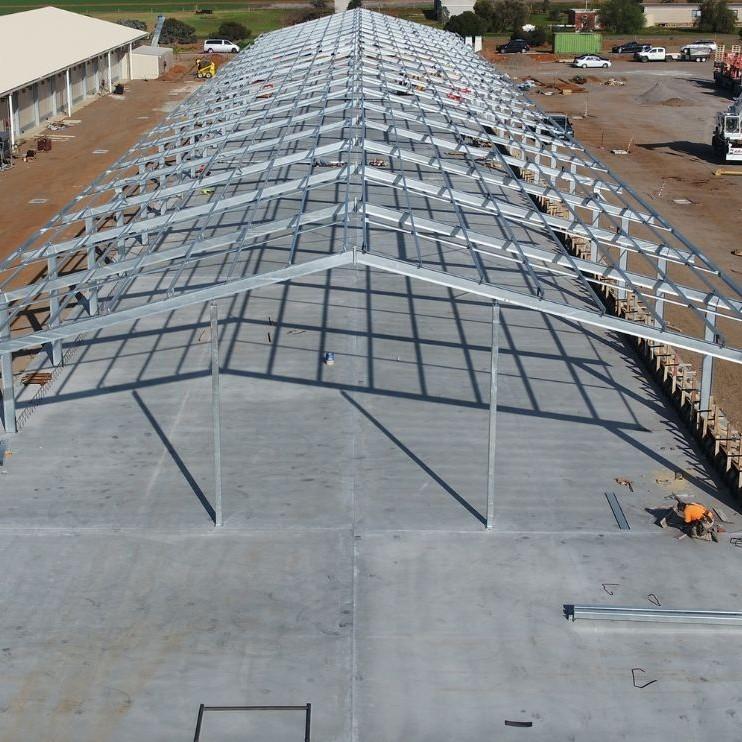

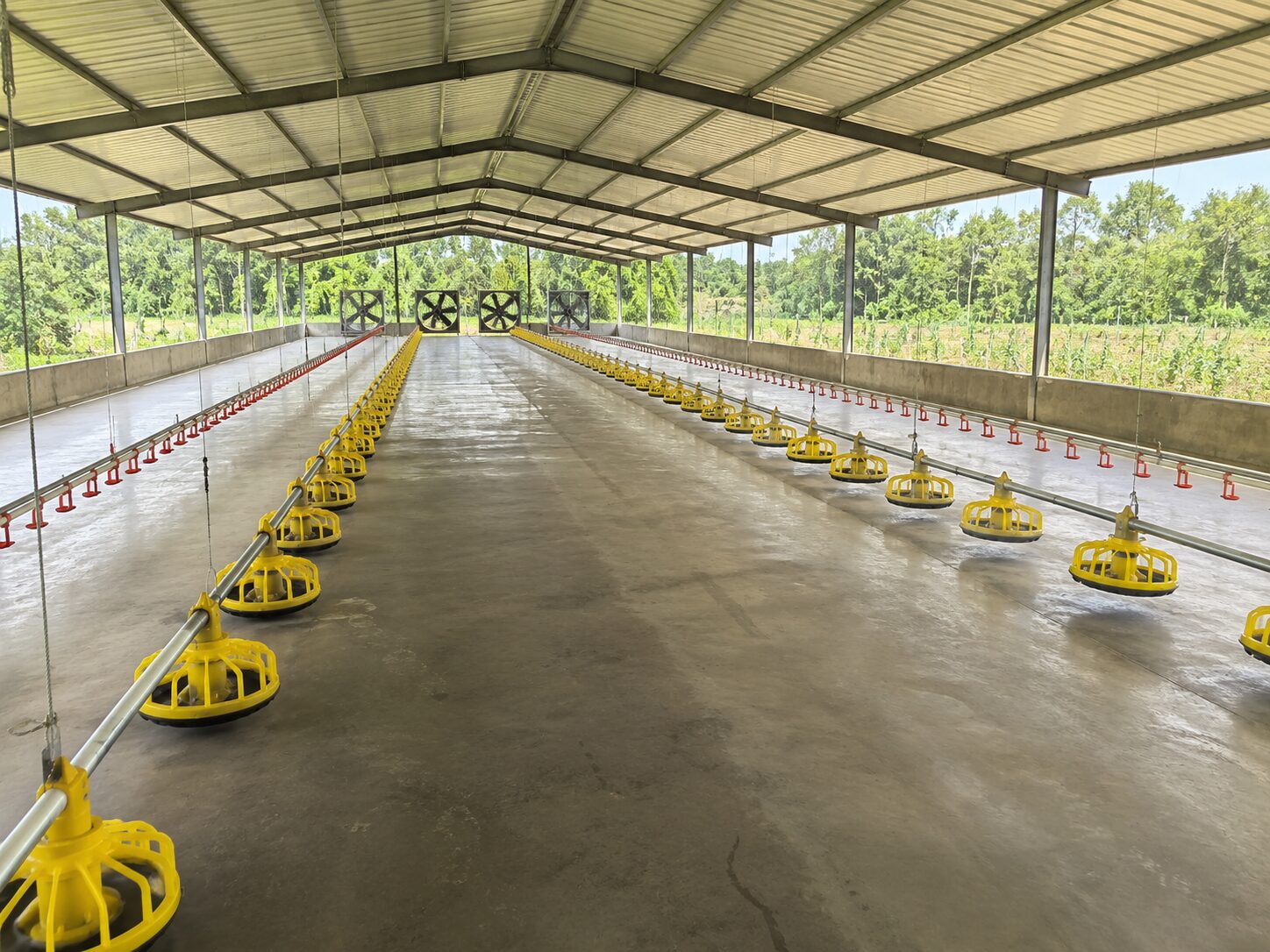

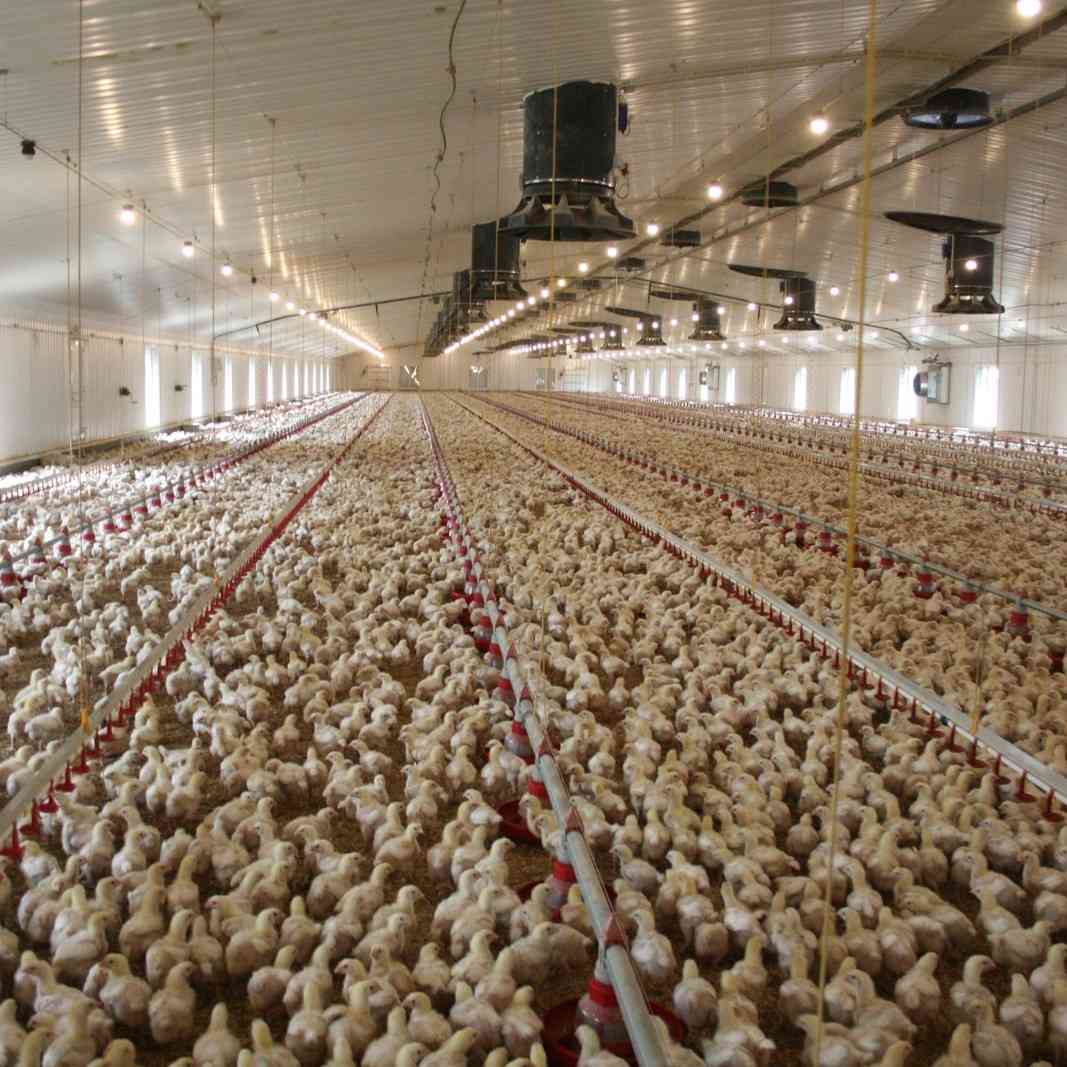

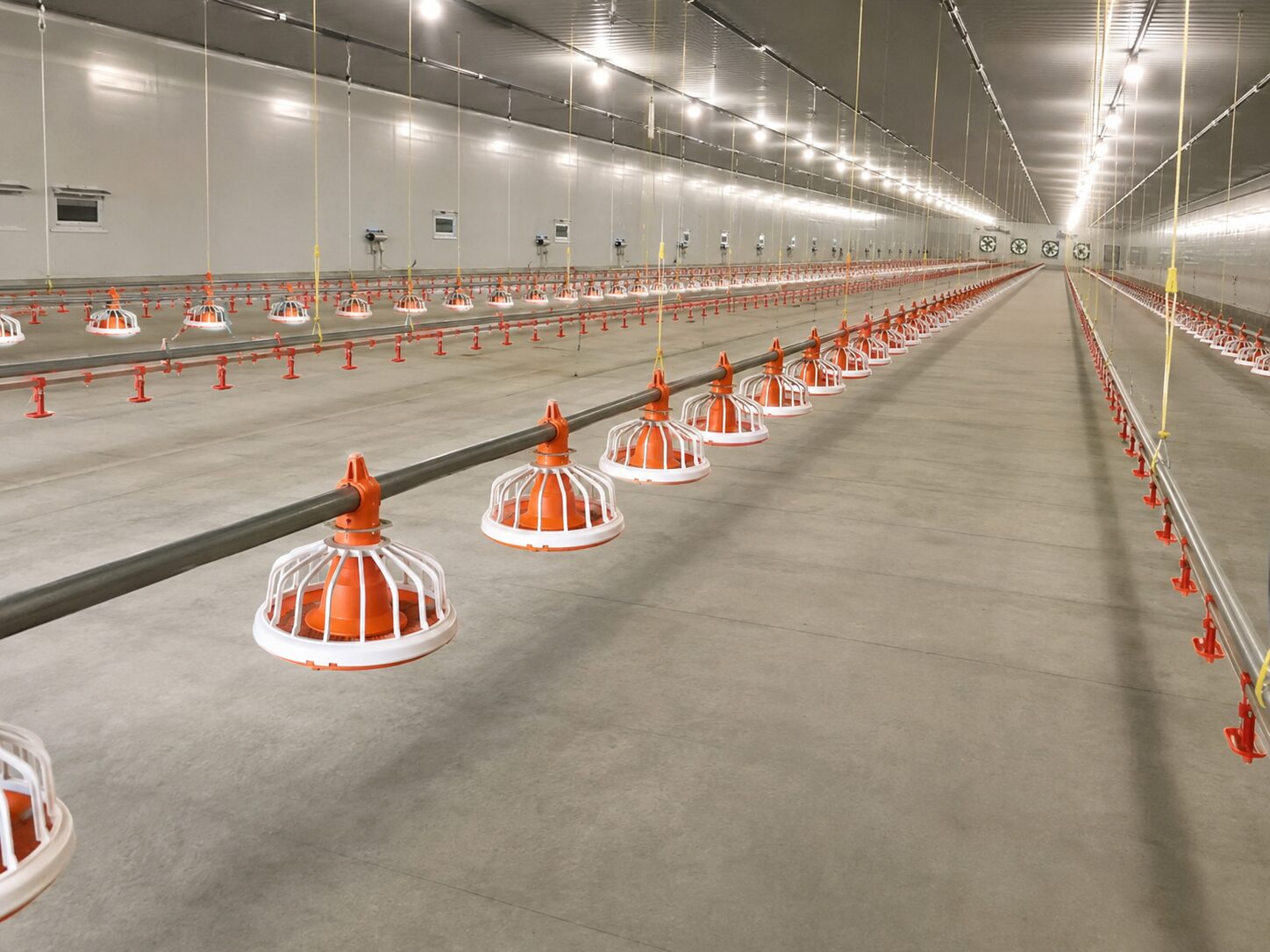

We provide construction support for broiler floor raising systems, including steel-structure poultry houses, automatic feeding system preparation, drinking water system support, ventilation openings, and control system areas. Our team can build poultry houses that are practical, durable, and ready for modern broiler farm equipment installation.

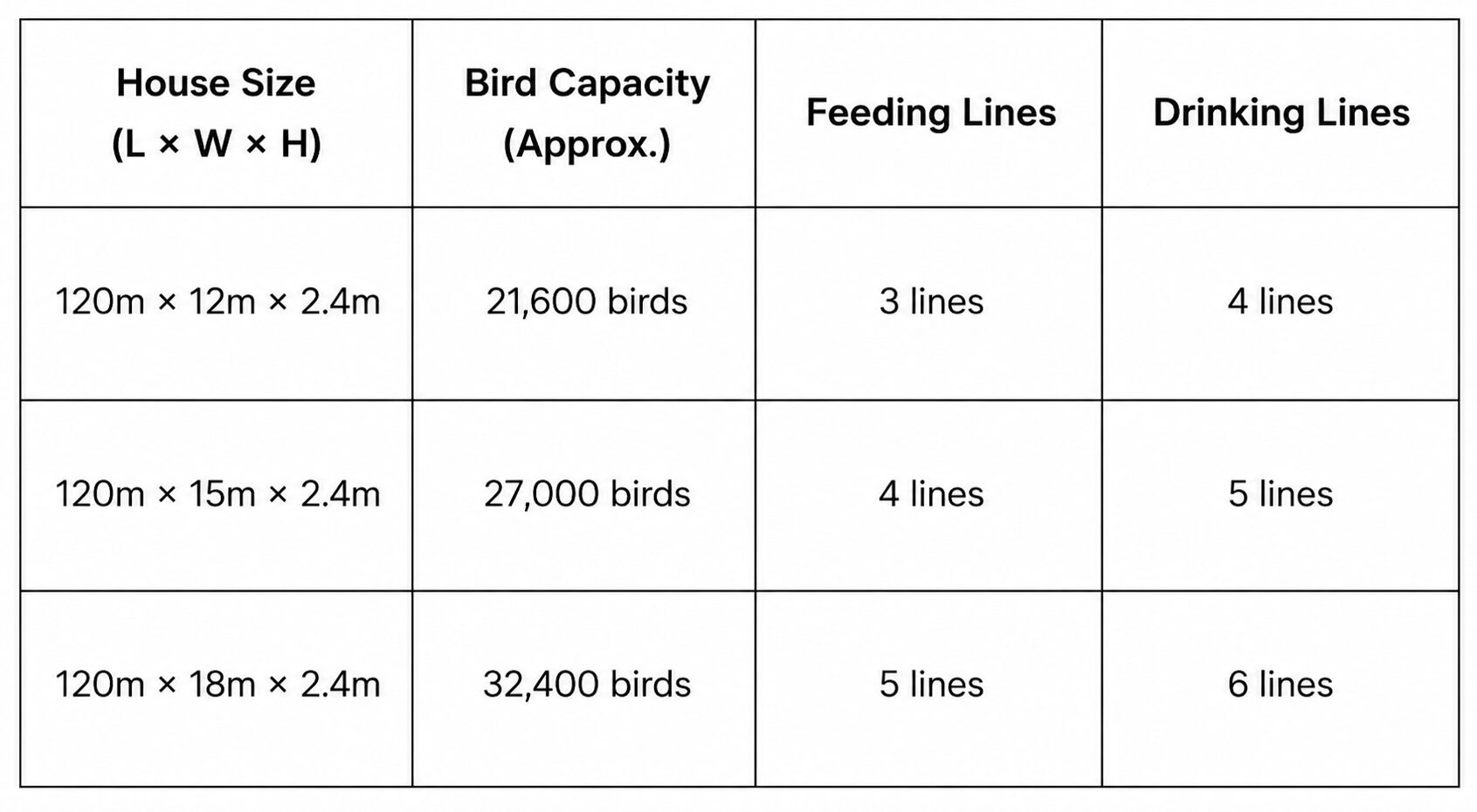

| House Size (L × W × H) | Bird Capacity (Approx.) | Feeding Lines | Drinking Lines |
|---|---|---|---|
| 120m × 12m × 2.4m | 21,600 birds | 3 lines | 4 lines |
| 120m × 15m × 2.4m | 27,000 birds | 4 lines | 5 lines |
| 120m × 18m × 2.4m | 32,400 birds | 5 lines | 6 lines |
We prepare poultry houses for reliable automatic drinking water systems that help provide clean and consistent water supply for birds at different growth stages. Our construction support includes water pipe routes, drinking line installation areas, water tank platforms, filtration and pressure regulation spaces, drainage, and easy maintenance access.

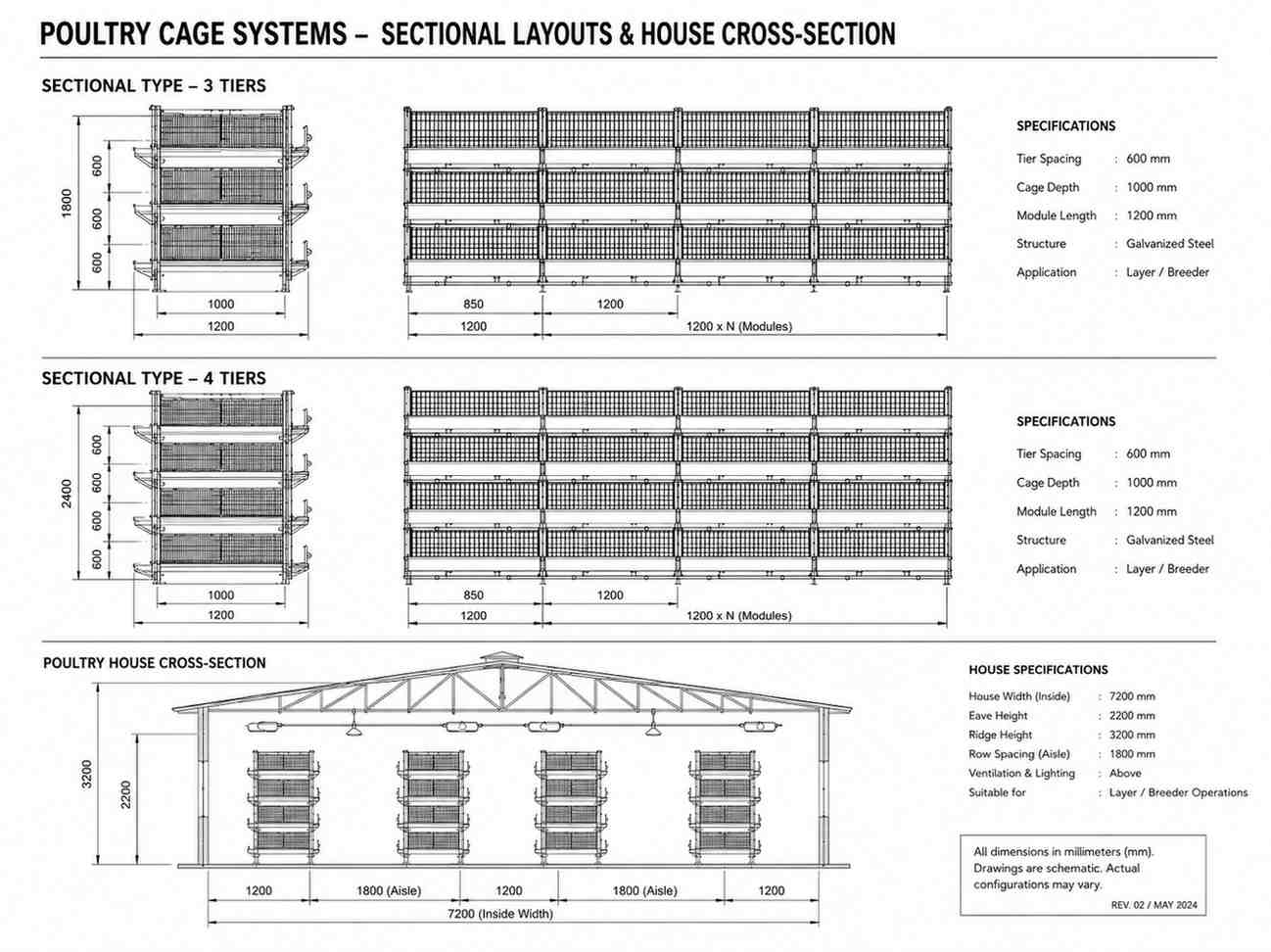

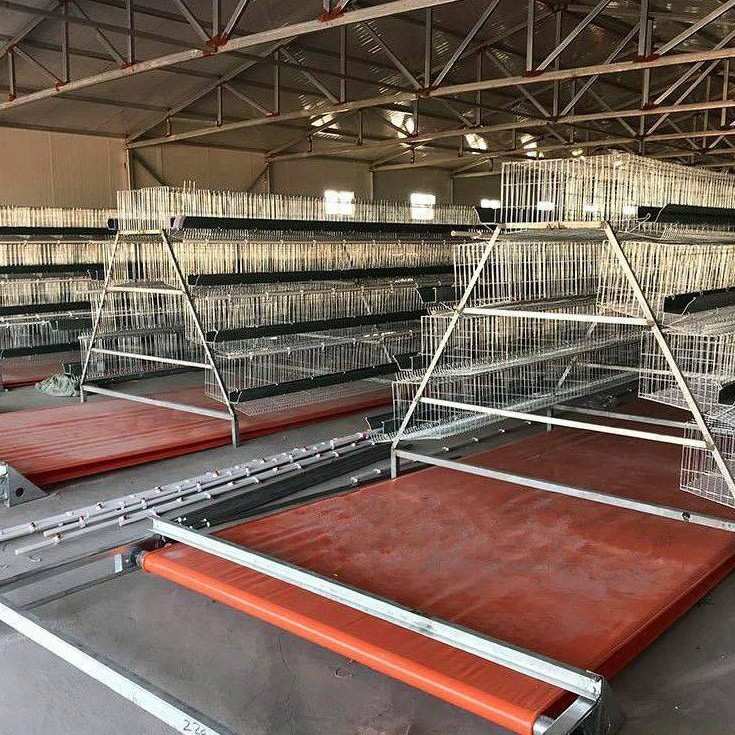

We construct poultry houses that can support broiler cage raising systems for organized and space-efficient poultry farming. These buildings can be prepared for multi-tier cage installation, feeding systems, drinking lines, manure removal, ventilation, and service walkways. The cage layout can be selected based on farm capacity, available building space, equipment system, and operation requirements.

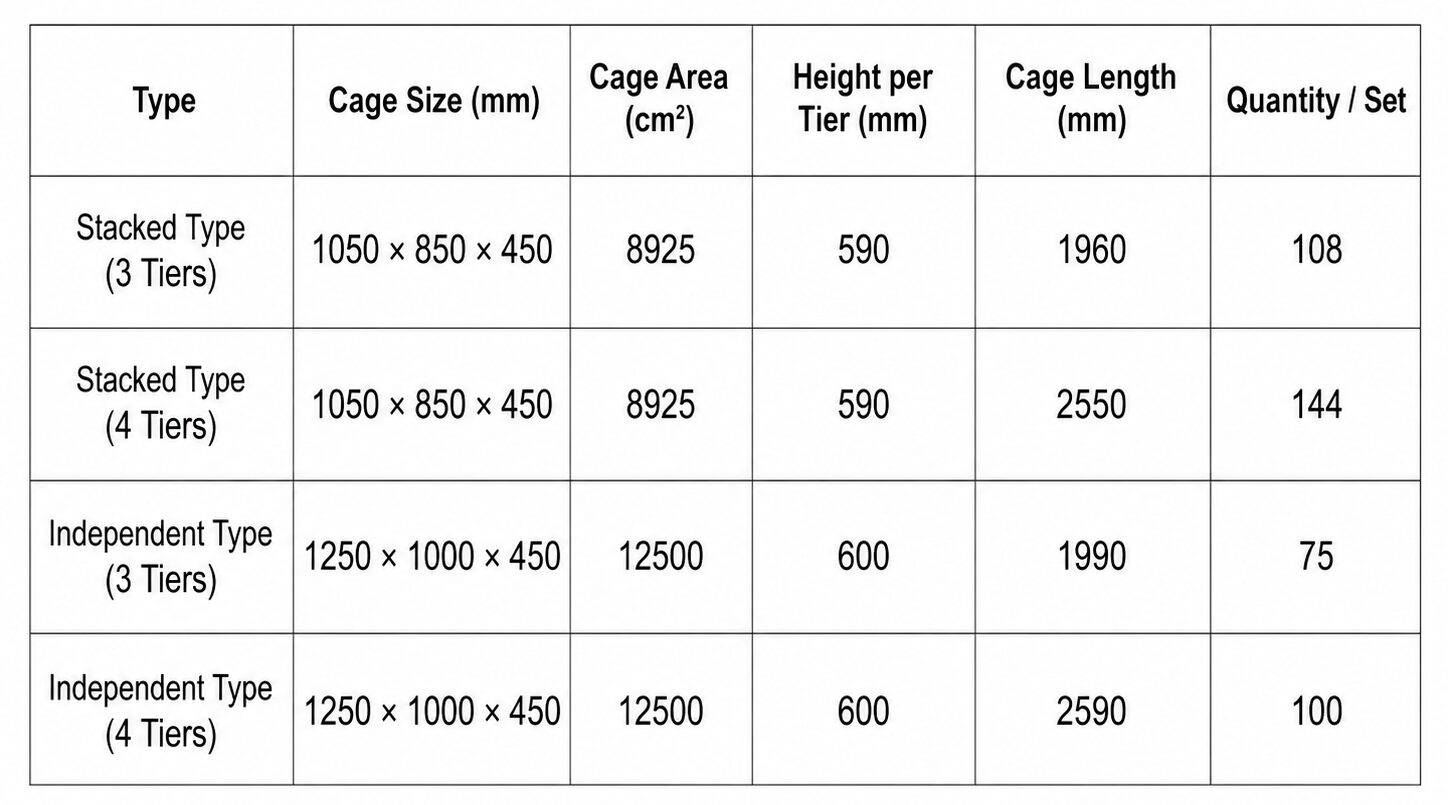

| Type | Cage Size (mm) | Bird Capacity | Cage Area (cm²) | Height per Tier (mm) | Cage Length (mm) |
|---|---|---|---|---|---|
| Stacked Type (3 Tiers) | 1050 × 850 × 450 | 108 | 8925 | 590 | 1960 |
| Stacked Type (4 Tiers) | 1050 × 850 × 450 | 144 | 8925 | 590 | 2550 |

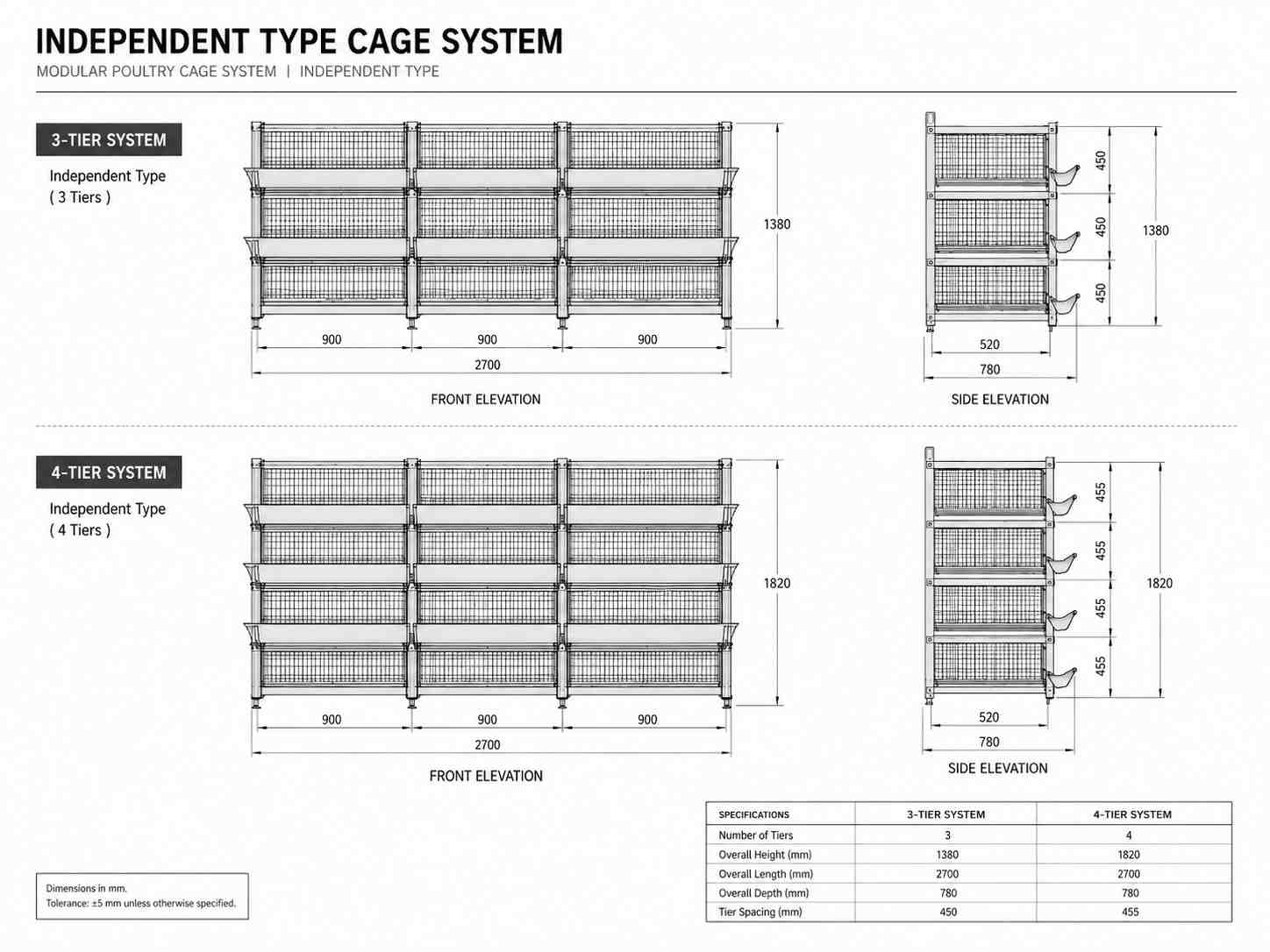

| Independent Type (3 Tiers) | 1250 × 1000 × 450 | 75 | 12500 | 600 | 1990 |
| Independent Type (4 Tiers) | 1250 × 1000 × 450 | 100 | 12500 | 600 | 2590 |
We construct poultry houses that can support semi-automatic duck cage systems with organized cage rows, feeding areas, drinking lines, ventilation, and easy service access. These systems can be planned in 3-tier or 4-tier layouts depending on farm capacity, available building space, and production requirements. Proper construction planning helps ensure the cage system fits correctly inside the house and supports smooth daily operation, cleaning, and maintenance.

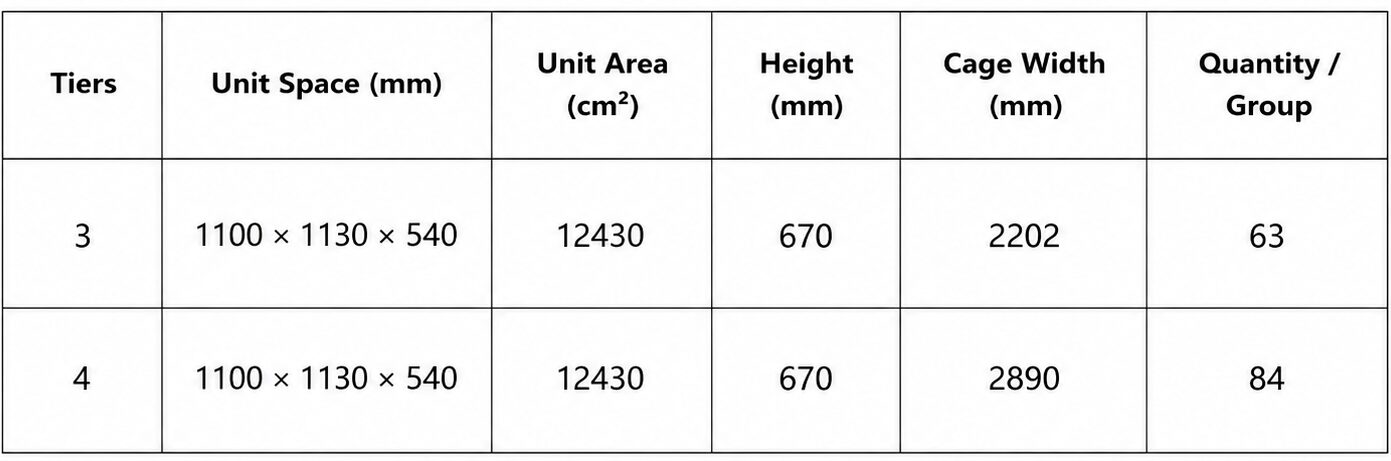

| Tiers | Unit Space (mm) | Birds Per Group | Unit Area (cm²) | Height (mm) | Cage Width (mm) |
|---|---|---|---|---|---|
| 3 | 1100 × 1130 × 540 | 63 | 12430 | 670 | 2202 |
| 4 | 1100 × 1130 × 540 | 84 | 12430 | 670 | 2890 |

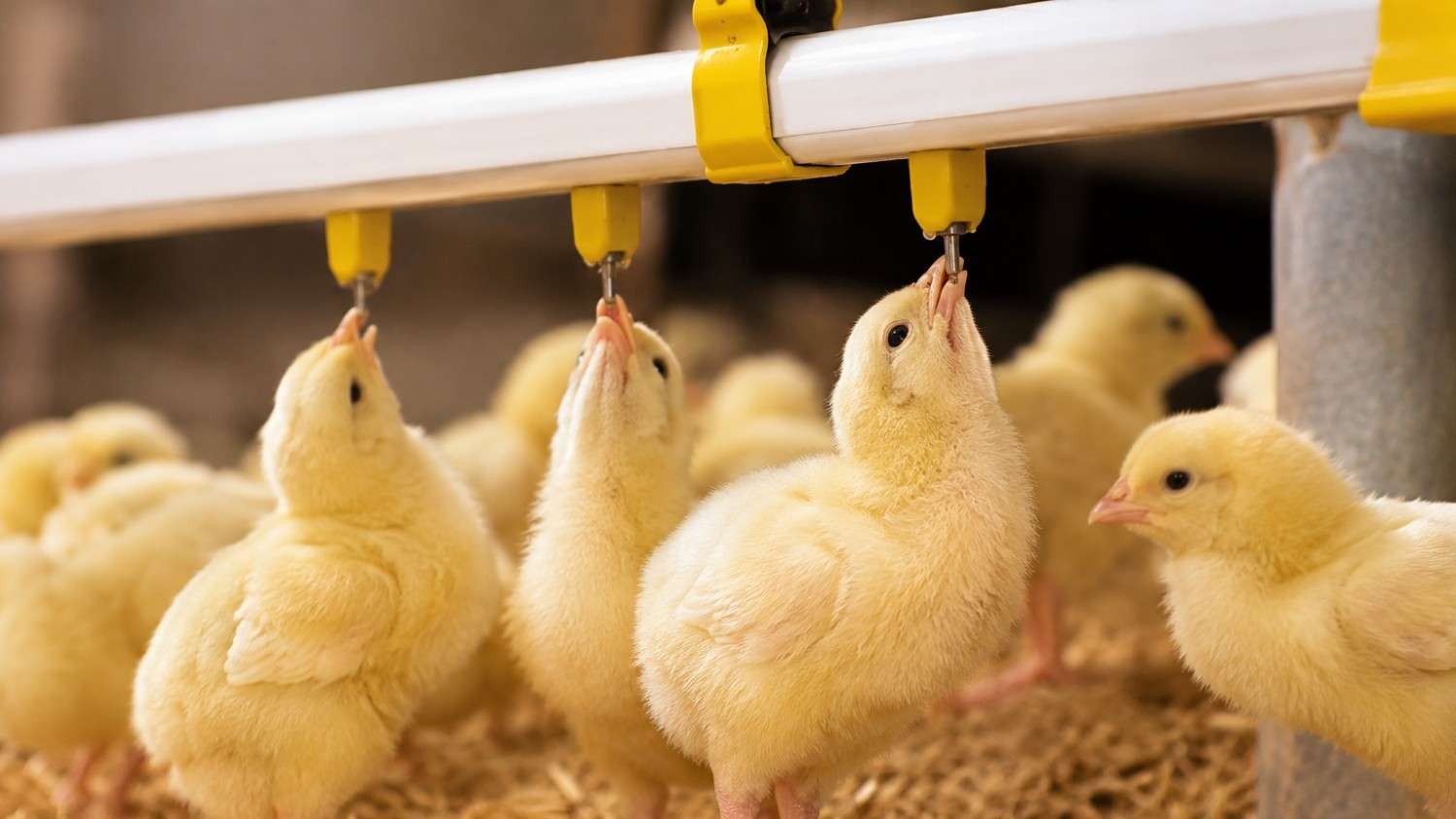

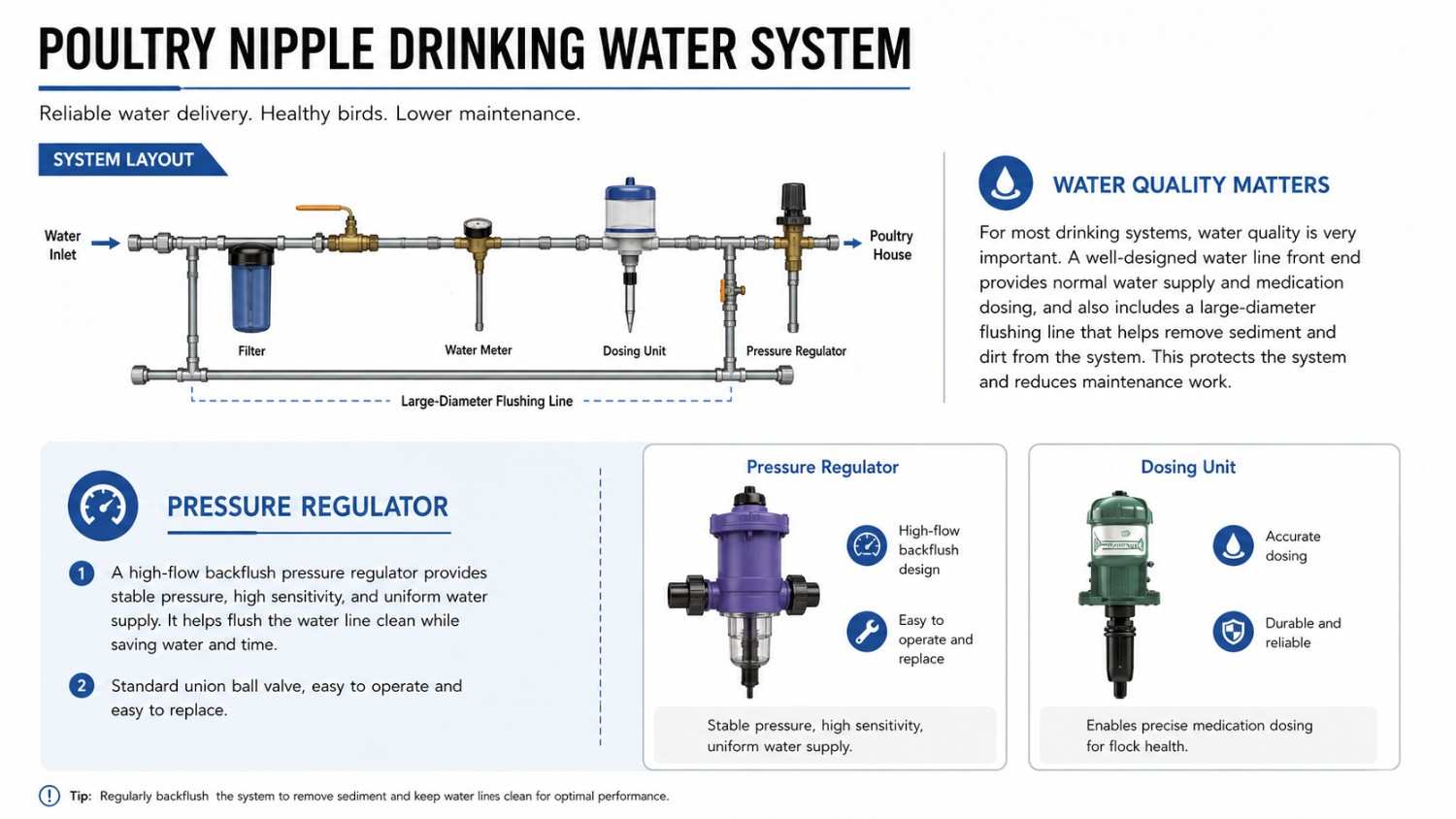

We prepare poultry houses for nipple drinking water systems that provide clean and consistent water supply for birds at different growth stages. Our construction support includes water pipe routes, hanging support systems, pressure regulator space, filtration areas, water tank platforms, drainage, and maintenance access. The system can be planned for broilers, ducks, and breeder chickens, helping keep the poultry house cleaner, more organized, and easier to manage.
Nipple Rotation: 360° free rotation
Broiler Capacity: 8–12 birds per nipple
Duck Capacity: 10 birds per nipple
Breeder Chicken Capacity: 10 birds per nipple
Support Pipe Coating: Hot-dip galvanized, around 275g/m²
Main Components: Filter, water meter, pressure regulator, dosing unit, nipple drinkers, pipe support system

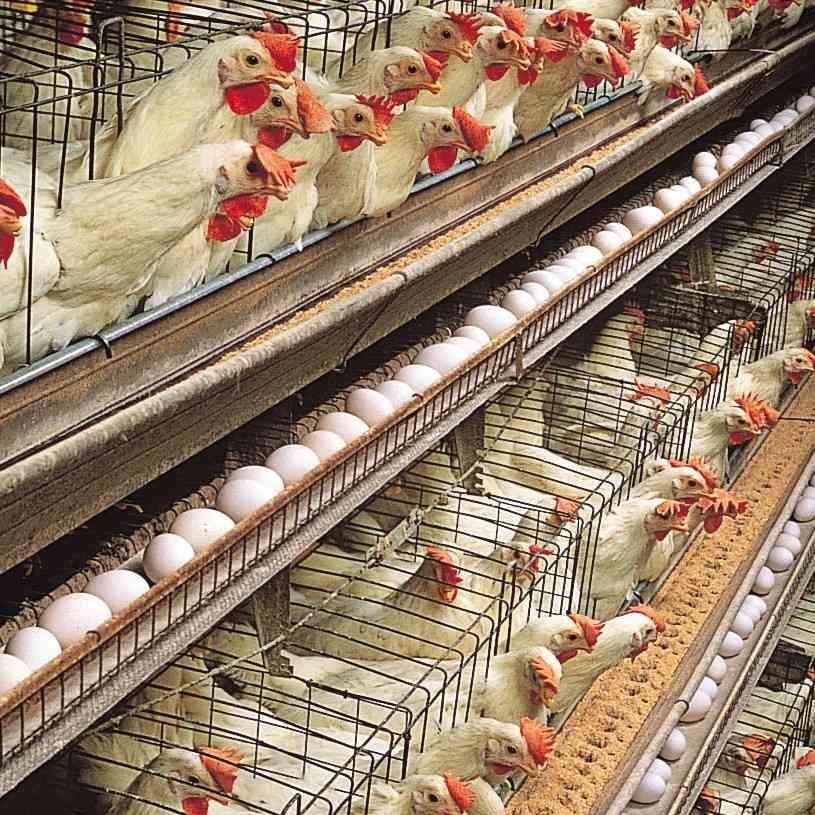

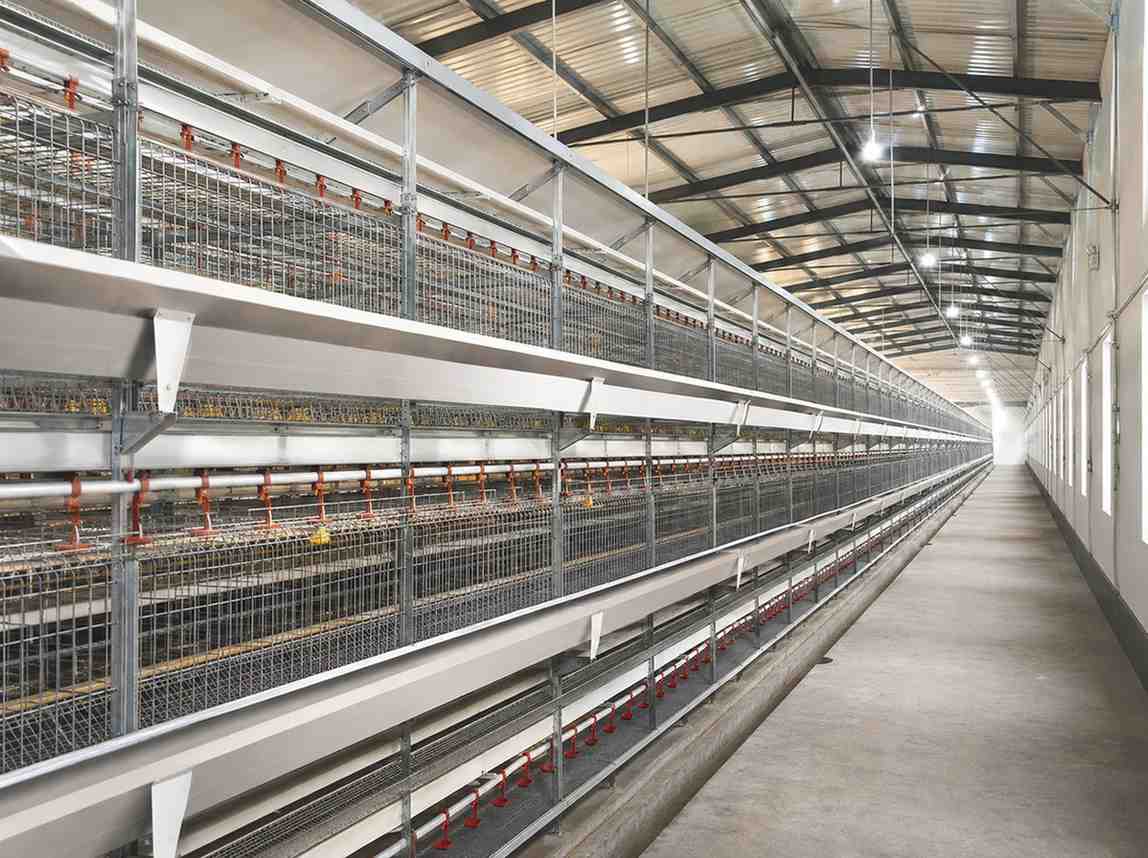

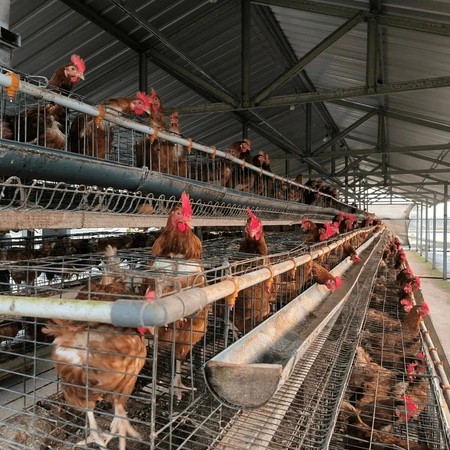

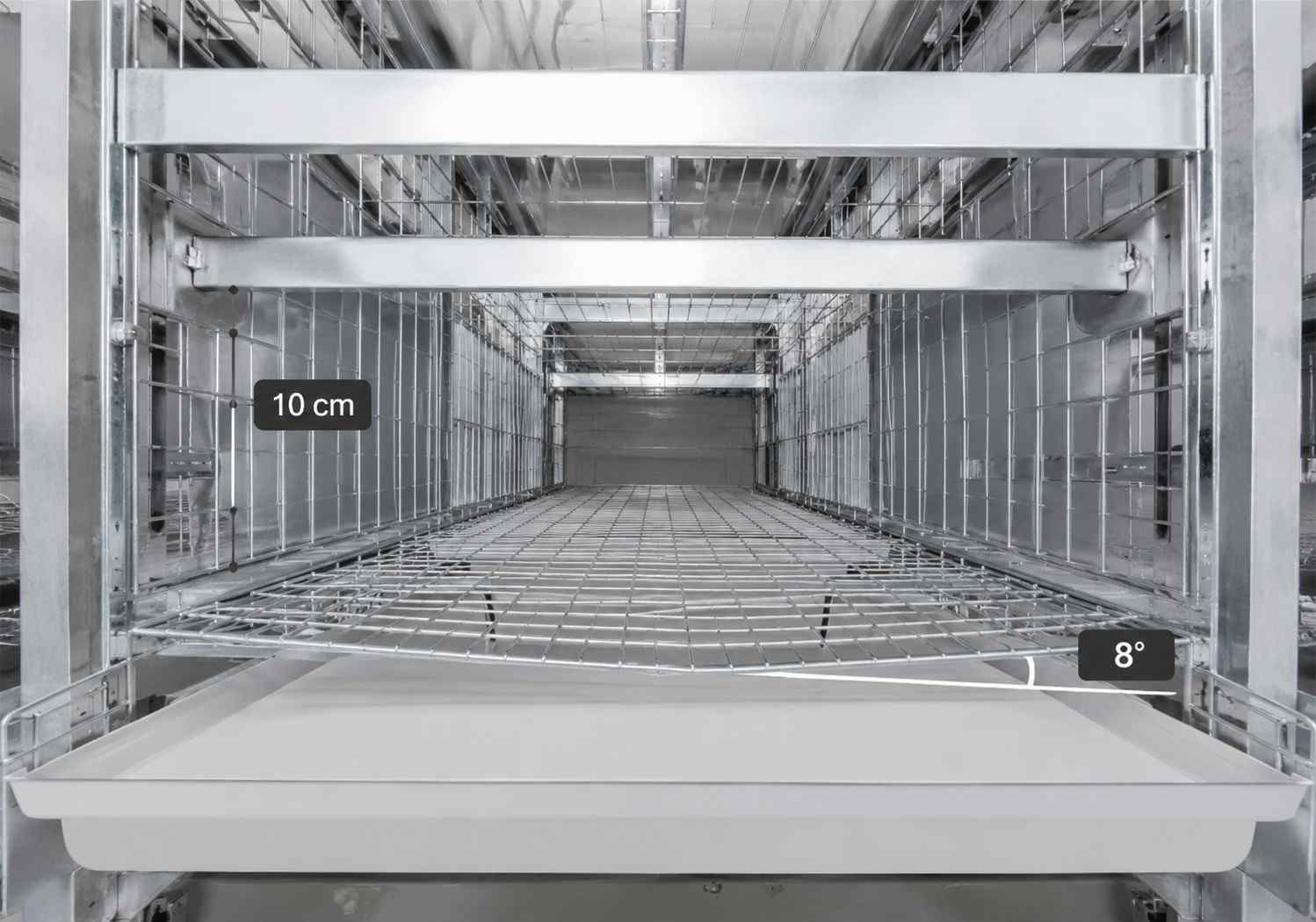

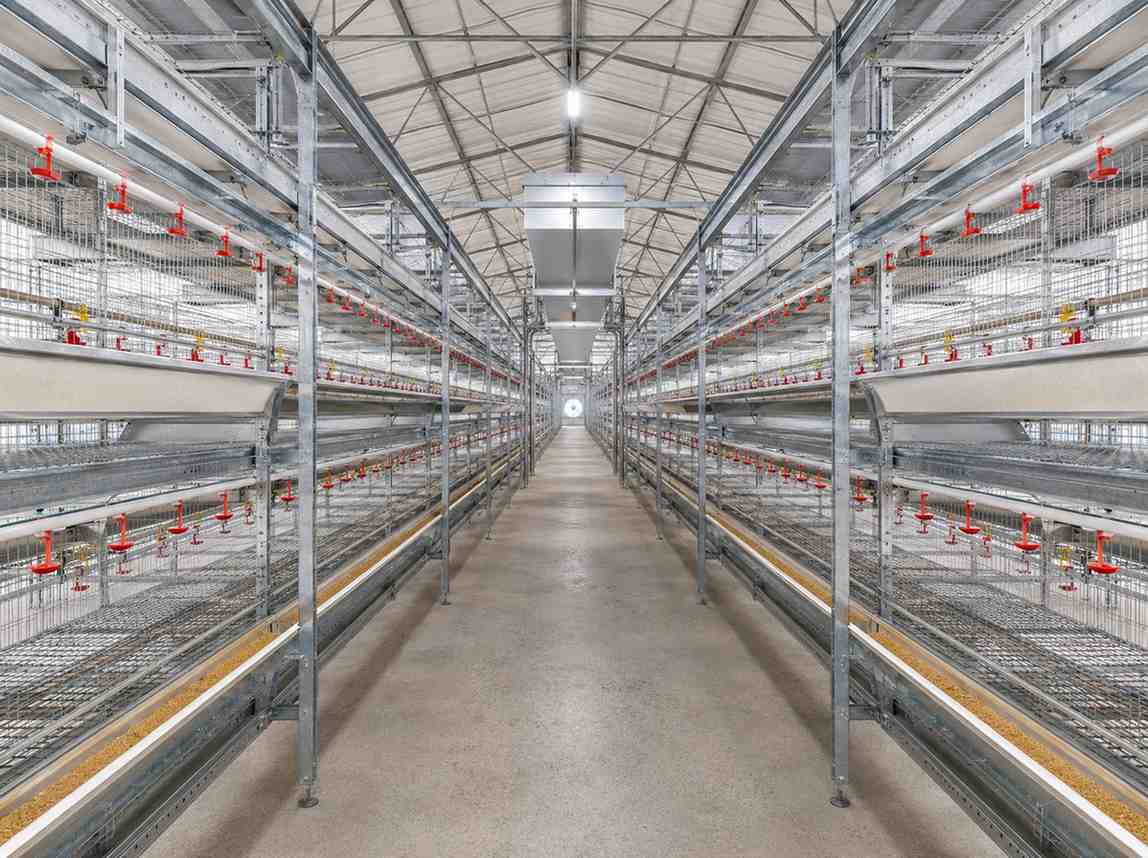

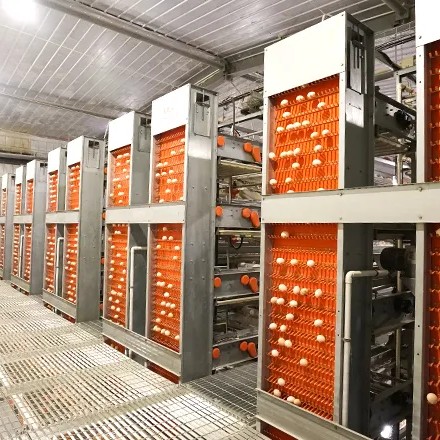

We construct poultry houses that can support H-Type layer cage systems for commercial egg production farms. These systems are designed for high-capacity layer farming with multi-tier cage layouts, feeding lines, nipple drinking systems, egg collection, manure removal, ventilation, and service access. The specifications and capacity planning help determine the required poultry house size, number of tiers, cage rows, bird capacity, and equipment layout before construction begins.

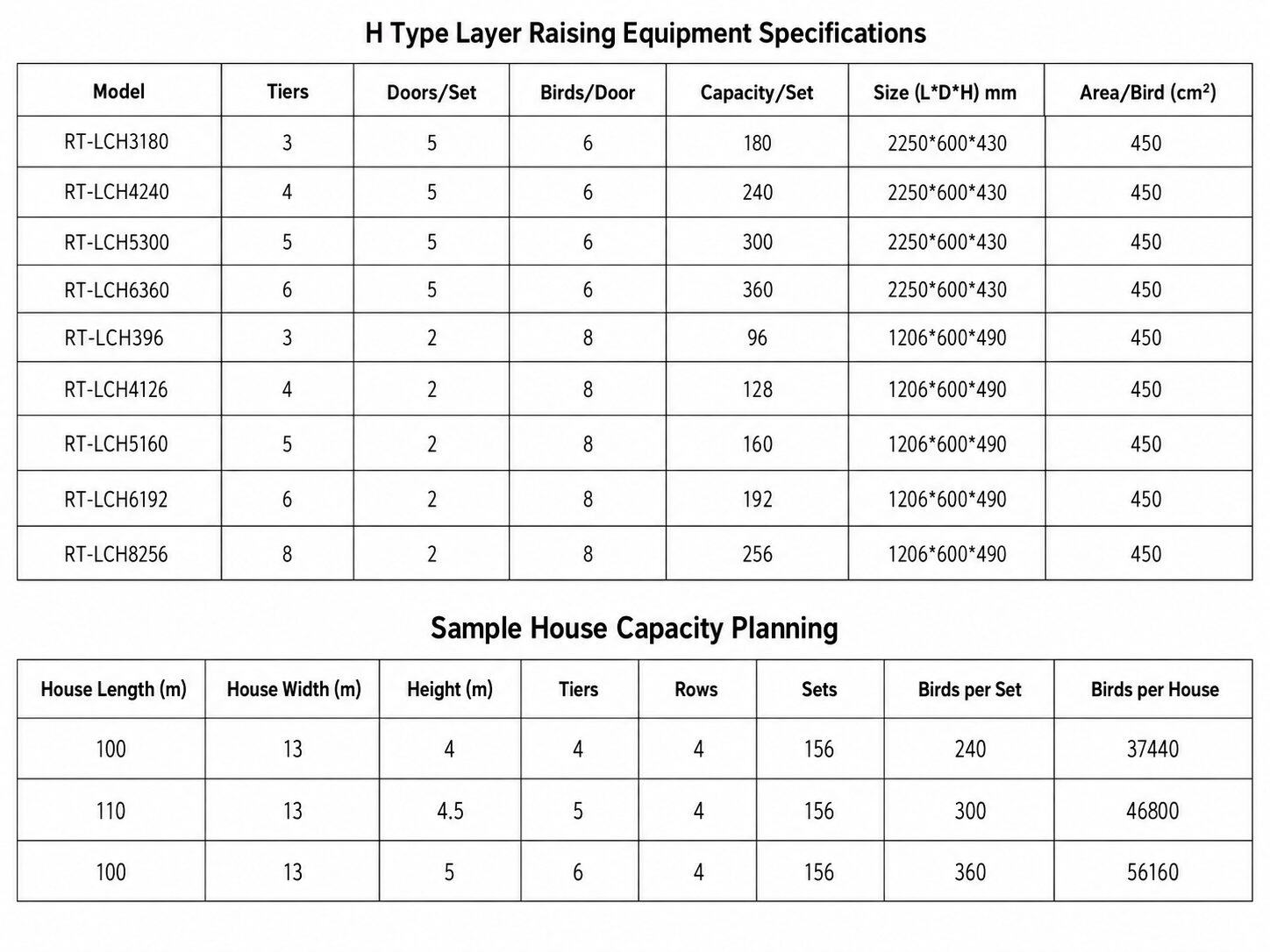

| Model | Tiers | Doors/Set | Birds/Door | Birds Per Set | Size (L×D×H) mm | Area/Bird (cm²) |
|---|---|---|---|---|---|---|
| RT-LCH3180 | 3 | 5 | 6 | 180 | 2250 × 600 × 430 | 450 |
| RT-LCH4240 | 4 | 5 | 6 | 240 | 2250 × 600 × 430 | 450 |
| RT-LCH5300 | 5 | 5 | 6 | 300 | 2250 × 600 × 430 | 450 |
| RT-LCH6360 | 6 | 5 | 6 | 360 | 2250 × 600 × 430 | 450 |
| RT-LCH396 | 3 | 2 | 8 | 96 | 1206 × 600 × 490 | 450 |
| RT-LCH4126 | 4 | 2 | 8 | 128 | 1206 × 600 × 490 | 450 |
| RT-LCH5160 | 5 | 2 | 8 | 160 | 1206 × 600 × 490 | 450 |
| RT-LCH6192 | 6 | 2 | 8 | 192 | 1206 × 600 × 490 | 450 |
| RT-LCH8256 | 8 | 2 | 8 | 256 | 1206 × 600 × 490 | 450 |

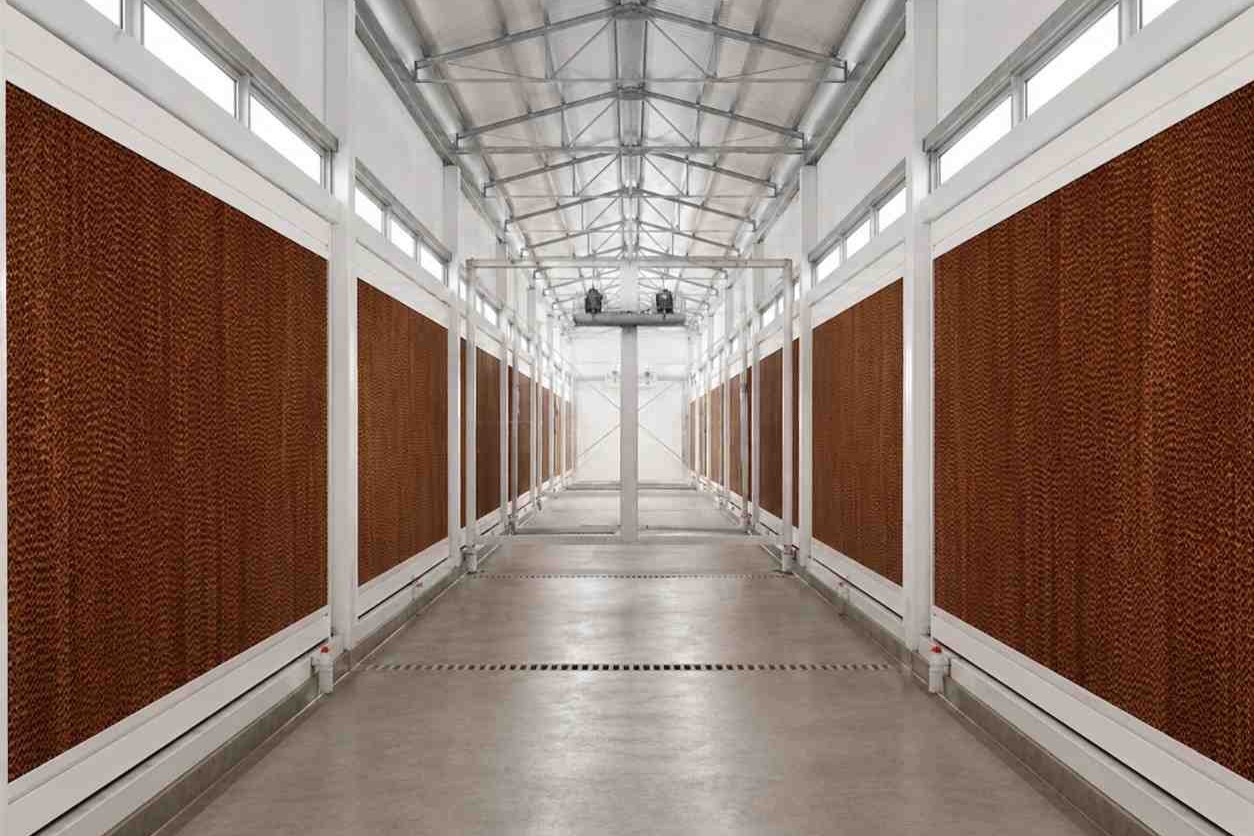

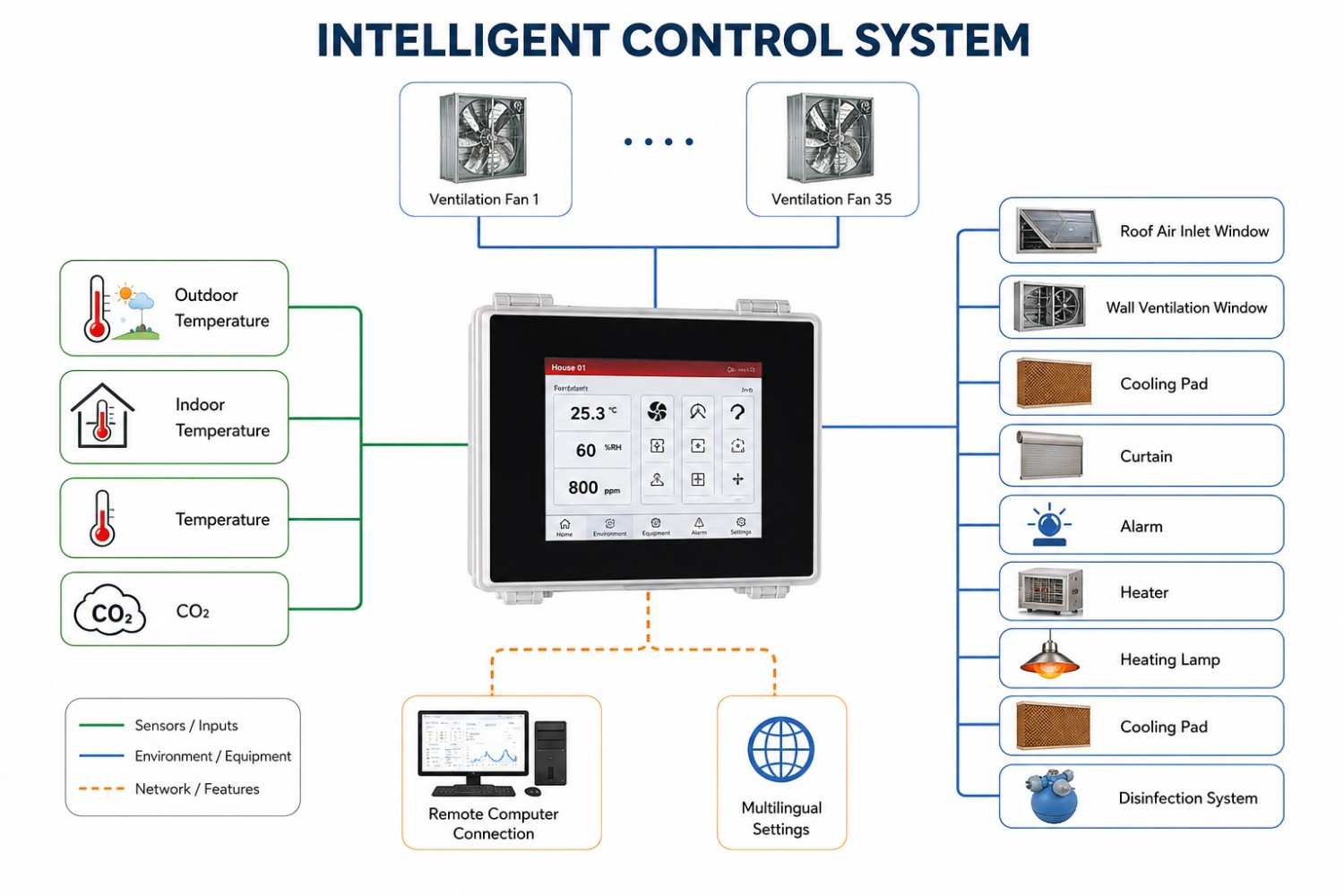

We prepare poultry houses for intelligent environmental control systems that help manage temperature, humidity, ventilation, cooling, air inlets, alarms, and other farm equipment from a central control system. Our construction support includes control room preparation, electrical and cable routing, fan openings, cooling pad wall sections, air inlet areas, drainage channels, and maintenance access. These systems help maintain a stable poultry house environment, improve airflow, reduce heat stress, and support smoother daily farm operation.

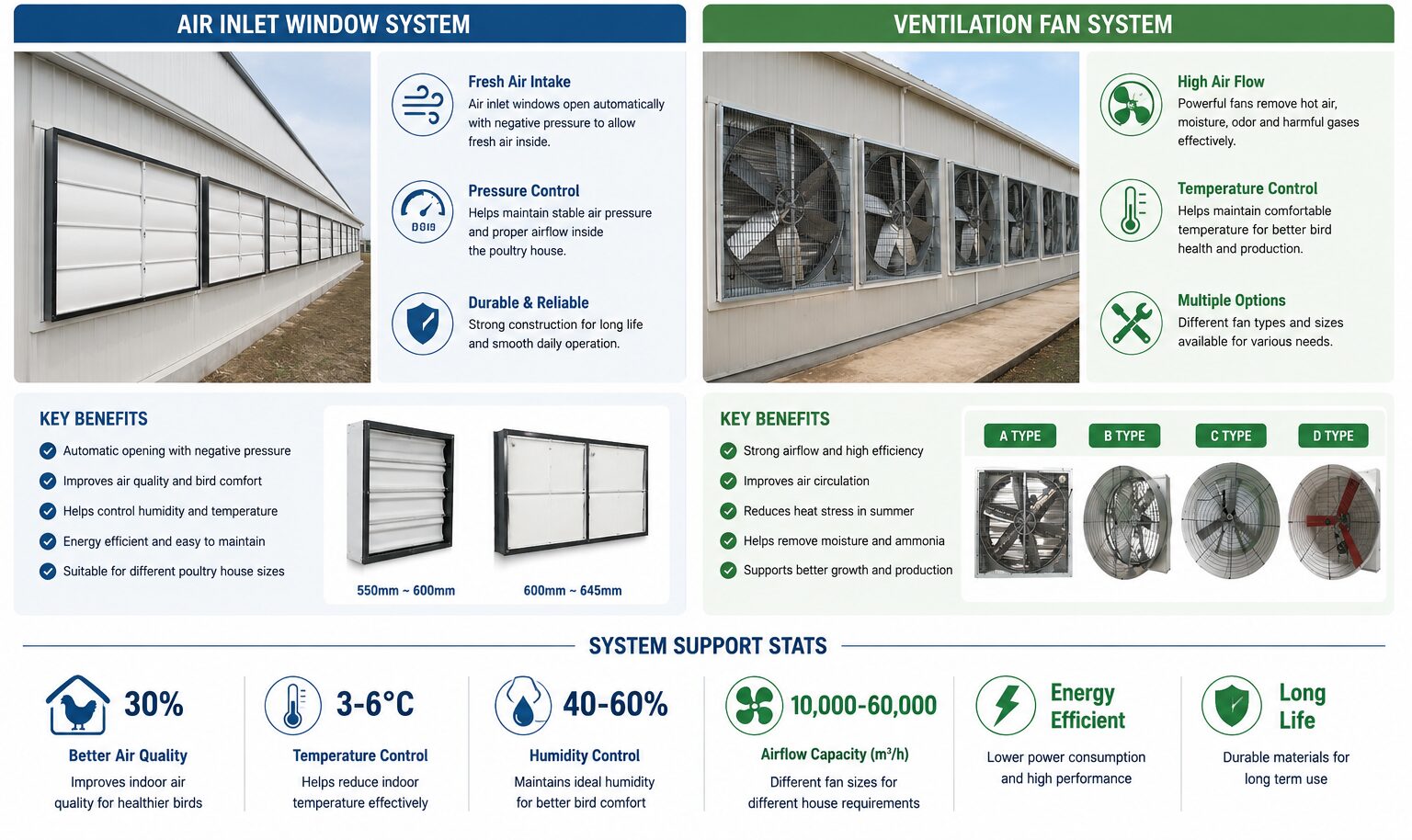

We prepare poultry houses for proper ventilation and air inlet systems that help maintain fresh airflow, reduce heat, control humidity, and improve the indoor environment. Our construction support includes fan openings, air inlet window areas, wall framing, electrical route preparation, service access, and ventilation layout planning. These systems help remove hot air, moisture, odor, and harmful gases while allowing fresh air to enter the poultry house, creating a healthier and more comfortable environment for birds.
We make farm construction easy and hassle-free. Our step-by-step approach ensures your project is completed efficiently, on time, and built for long-term success.
We start by understanding your goals, budget, and land conditions. Our team evaluates your site to ensure the best possible planning for your project.
Based on your requirements, we create a detailed and optimized layout for your poultry farm, livestock facility, or egg factory — focusing on efficiency, ventilation, and future scalability.
Our skilled team handles the complete construction process, including structures, equipment installation, and system setup ensuring quality at every stage.
We deliver a fully completed, ready-to-use farm or factory, along with guidance to help you get started smoothly.
From the first consultation to final handover, SIMEX ensures your farm is built right so you can start with confidence and grow without worry.
Trusted by clients for reliable construction, efficient design, and cost-effective solutions.
Need production capacity details, pricing, or technical guidance for Livestock & Poultry Farm Construction?
Our Engineer is ready to assist you with:
